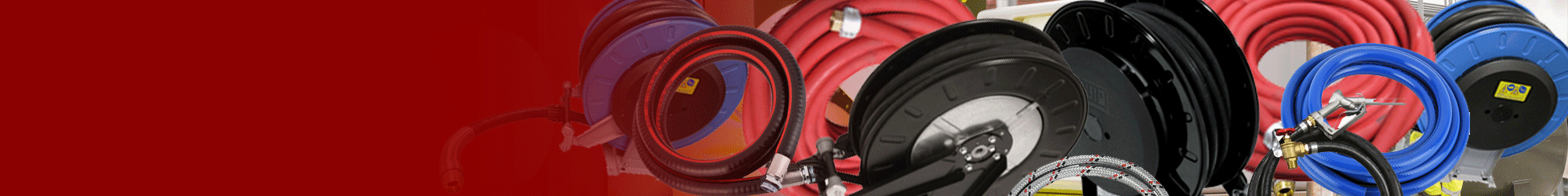

Fuel Hose Reels and Dispensing Hoses
TransFlo Instruments supply a wide and varied range of hose reel and hose reel assembly kits and delivery/suction hoses. We can supply as part of installation services and new installations or as spare part equipment for your existing Fuel Management System Facility. Below are a sample of the hoses and hose-reels available but if you dont see exactly what you are looking for or if you have a specification requirement, please contact us and will be able to help.
Hose Set Diesel Gravity 3m
HOS001
- Type Diesel
- Soft Walled
- BSPT 1 inch hose tail (Male)
- Locking angle valve without Padlock 1 inch
- Aluminium Puisi Self 2000 manual nozzle
- Other lengths available to be specified upon request
Quote
Please give us a call for our up-to-date competitive prices and an immediate response on the number below or complete our enquiry form and a TransFlo Representative will call you back
+44 (0)1622 474100 / +44 (0) 3333110058
Coiled 25m AdBlue® Hose
HOS002
- Type AdBlue®
- Length 25m
- 19mm Inner
- 29mm Outer
- 10bar Max pressure
Quote
Please give us a call for our up-to-date competitive prices and an immediate response on the number below or complete our enquiry form and a TransFlo Representative will call you back
+44 (0)1622 474100 / +44 (0) 3333110058
Delivery Hose Parker 4m or 6m
HOS003
- Type Diesel
- 4m and 6m available
- 1 inch and 3/4 inch available
- 10bar pressure max
- 19/25mm ID
- 27/34mm OD
- 1 inch BSP Male
Quote
Please give us a call for our up-to-date competitive prices and an immediate response on the number below or complete our enquiry form and a TransFlo Representative will call you back
+44 (0)1622 474100 / +44 (0) 3333110058
Diesel Delivery Hose - Tanker
HOS004
- Type Diesel
- Length 61m
- BSP 1 1/2" BSP Brass
- Aluminium Hose Clamps
- M-F, M-M, Open Options available
Quote
Please give us a call for our up-to-date competitive prices and an immediate response on the number below or complete our enquiry form and a TransFlo Representative will call you back
+44 (0)1622 474100 / +44 (0) 3333110058
Hose Reel - Diesel Automatic Piusi
HOS005
- Type Diesel
- +/- 0.2% Accuracy
- Rating 230V
- 45 Litres/Min
- ATEX DMG-14 Approved
- Integrated Nozzle Lock
- Lockable Stainless Steel Cabinet
- Digital 25mm Display
- Choice of Nozzles available when ordering
Quote
Please give us a call for our up-to-date competitive prices and an immediate response on the number below or complete our enquiry form and a TransFlo Representative will call you back
+44 (0)1622 474100 / +44 (0) 3333110058
Diesel Hose Reel High Capacity 15m
HOS006
- Type Diesel
- High Capacity
- Length 15m
- Automatic Rewind
- 10bar pressure rating
- Heavy Duty
- BSP 1 inch Male nozzle end
- BSP 1 inch Female with elbow
Quote
Please give us a call for our up-to-date competitive prices and an immediate response on the number below or complete our enquiry form and a TransFlo Representative will call you back
+44 (0)1622 474100 / +44 (0) 3333110058
Diesel Hose Reel High Capacity 25m
HOS007
- Type Diesel
- High Capacity
- Length 25m
- BSP 1 inch Male Nozzle End
- BSP 1 inch Female with inlet swivel
- 4 Waya Rollers
- 10bar pressure rating
- Integrated anti-kink
Quote
Please give us a call for our up-to-date competitive prices and an immediate response on the number below or complete our enquiry form and a TransFlo Representative will call you back
+44 (0)1622 474100 / +44 (0) 3333110058
Diesel Hose Reel High Capacity 30m
HOS008
- Type Diesel
- High Capacity
- Length 25m
- BSP 1 inch Male Nozzle End
- BSP 1 inch Female with inlet swivel
- 4 Waya Rollers
- 10bar pressure rating
- Integrated anti-kink
Quote
Please give us a call for our up-to-date competitive prices and an immediate response on the number below or complete our enquiry form and a TransFlo Representative will call you back
+44 (0)1622 474100 / +44 (0) 3333110058
Diesel Dispensing Hose 3.3m
HOS009
- Type Diesel
- Length 3.3m
- Available in 3/4" and 1"
- BSP Fitting
- Soft Walled Flexibility
Quote
Please give us a call for our up-to-date competitive prices and an immediate response on the number below or complete our enquiry form and a TransFlo Representative will call you back
+44 (0)1622 474100 / +44 (0) 3333110058
Hose Reel Hose Assy 10m
HOS010
- Type Diesel
- Length 10m
- 16bar pressure rating
- BSPP 1 inch Male
- BSPP 1 inch Female
- Statically Bonded
Quote
Please give us a call for our up-to-date competitive prices and an immediate response on the number below or complete our enquiry form and a TransFlo Representative will call you back
+44 (0)1622 474100 / +44 (0) 3333110058
Diesel Delivery Hose Coil 50m
HOS011
- Type Diesel
- Length 50m
- 1 inch bore
- Soft Walled
- 3.5bar pressure (50psi)
Quote
Please give us a call for our up-to-date competitive prices and an immediate response on the number below or complete our enquiry form and a TransFlo Representative will call you back
+44 (0)1622 474100 / +44 (0) 3333110058
Diesel Delivery Hose Coil 60m
HOS012
- Type Diesel
- Length 60m
- 3/4 inch bore
- Soft Walled
- 3.5bar pressure (50psi)
Quote
Please give us a call for our up-to-date competitive prices and an immediate response on the number below or complete our enquiry form and a TransFlo Representative will call you back
+44 (0)1622 474100 / +44 (0) 3333110058
